Description

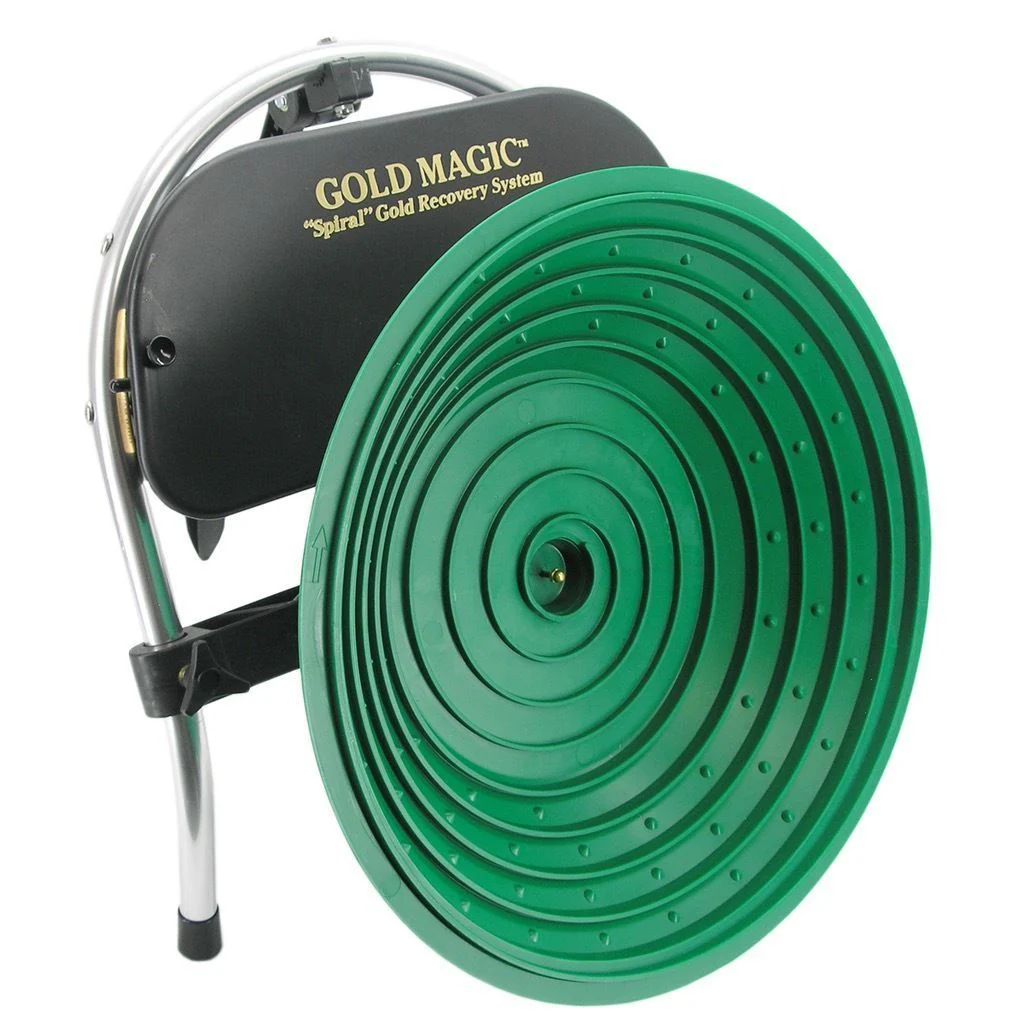

Process more material in less time with the Gold Magic 12E Spiral Gold Recovery System. Designed for serious prospectors and hobbyists alike, this portable gold panner can handle up to 140 lbs. of material per hour, helping you recover more gold efficiently.

The 12E operates wet or dry, allowing you to concentrate material in dry mode or recover clean gold in wet mode—even directly in a stream. Its innovative spiral design separates black sand and captures gold from fine flour gold to larger nuggets.

Performance & Capability:

• Processes approximately 140 lbs. (two 5-gallon buckets) per hour
• Handles material up to 2 inches — no pre-screening required
• Dry mode concentrates 140 lbs. down to about 2 cups of material
• Wet mode separates black sand and produces clean gold
• Recovers gold from flour gold to nuggets

Factory Included Items:

• Built-in 12-volt rechargeable battery
• Built-in 110V AC charger
• Owner’s manual
• Manufacturer warranty
• Ready to use right out of the box
• Battery recharge time is approximately 10 hours, with built-in overcharge protection.

Key Features:

• 17” diameter spiral pan with 69 agitation knobs
• Works wet or dry — no pump required
• Lightweight and portable — approx. 10 lbs. with battery
• Shipping weight: 15 lbs.
• Sets up in less than 5 minutes

Built for Rugged Outdoor Use

• Marine-grade aluminum frame
• Marine-grade stainless steel fasteners and pan shaft
• Oil-impregnated bronze bushings (no ball bearings to seize)
• Permanently lubricated sealed gear case
• No lubrication required
