Description

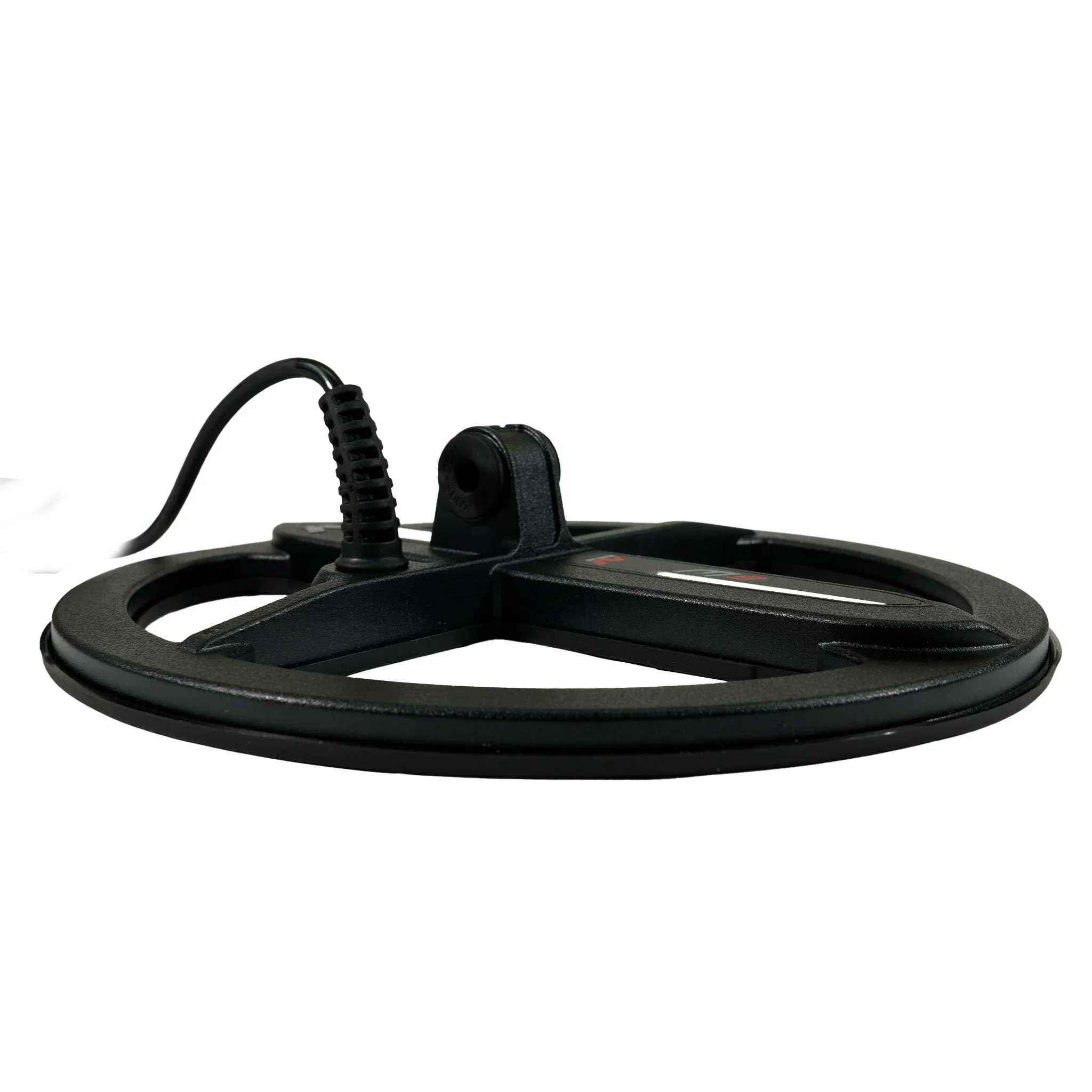

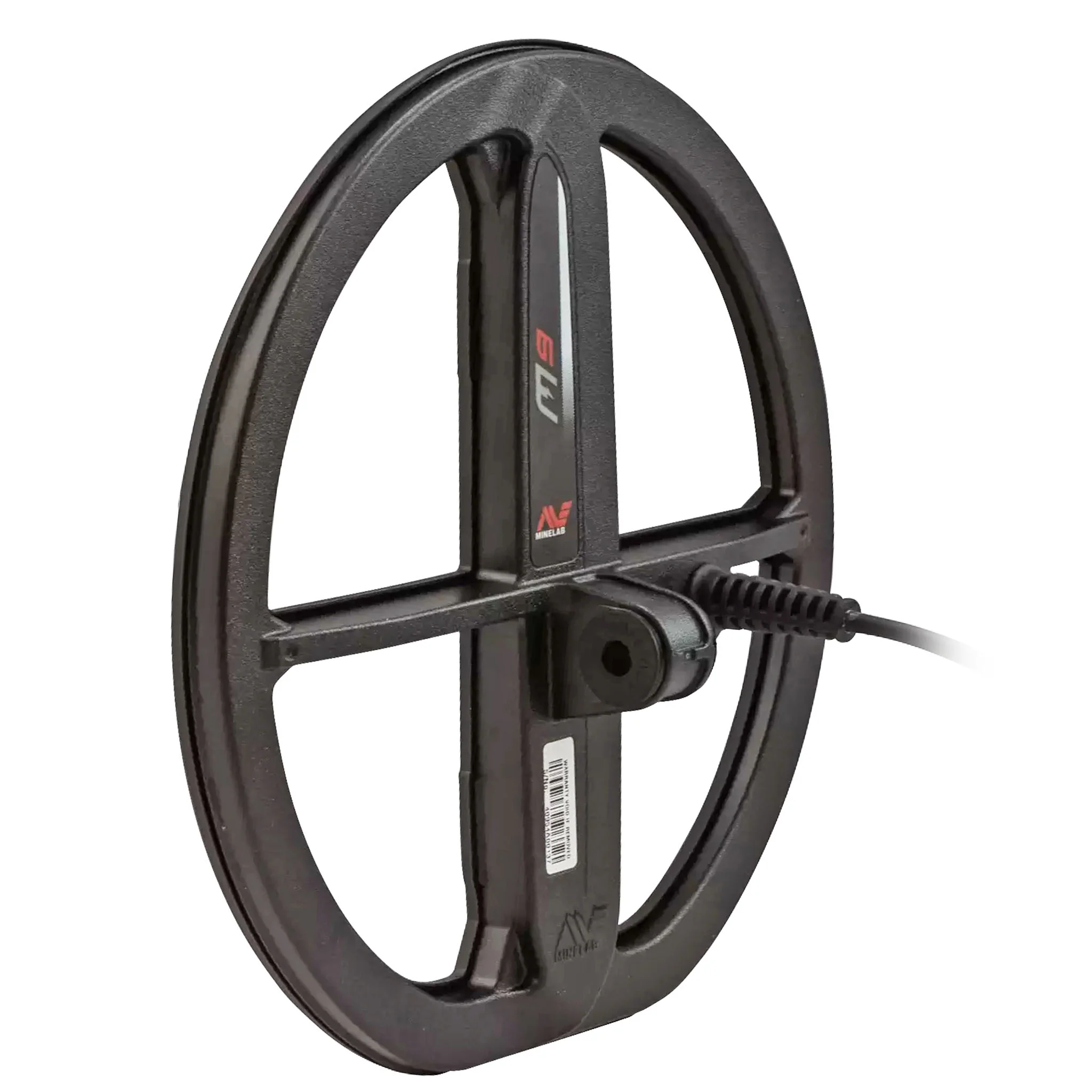

The Minelab M9 is a 9-inch round Double-D waterproof search coil engineered exclusively for the Manticore platform. Weighing just .80 lbs/362 grams with its pre-fitted skidplate, the M9 stands as the lightest round coil option in the Manticore family. This accessory coil is built for detectorists who need to reduce swing-weight fatigue during all-day hunts without sacrificing the deep target separation and advanced 2D mapping capabilities of their primary machine.

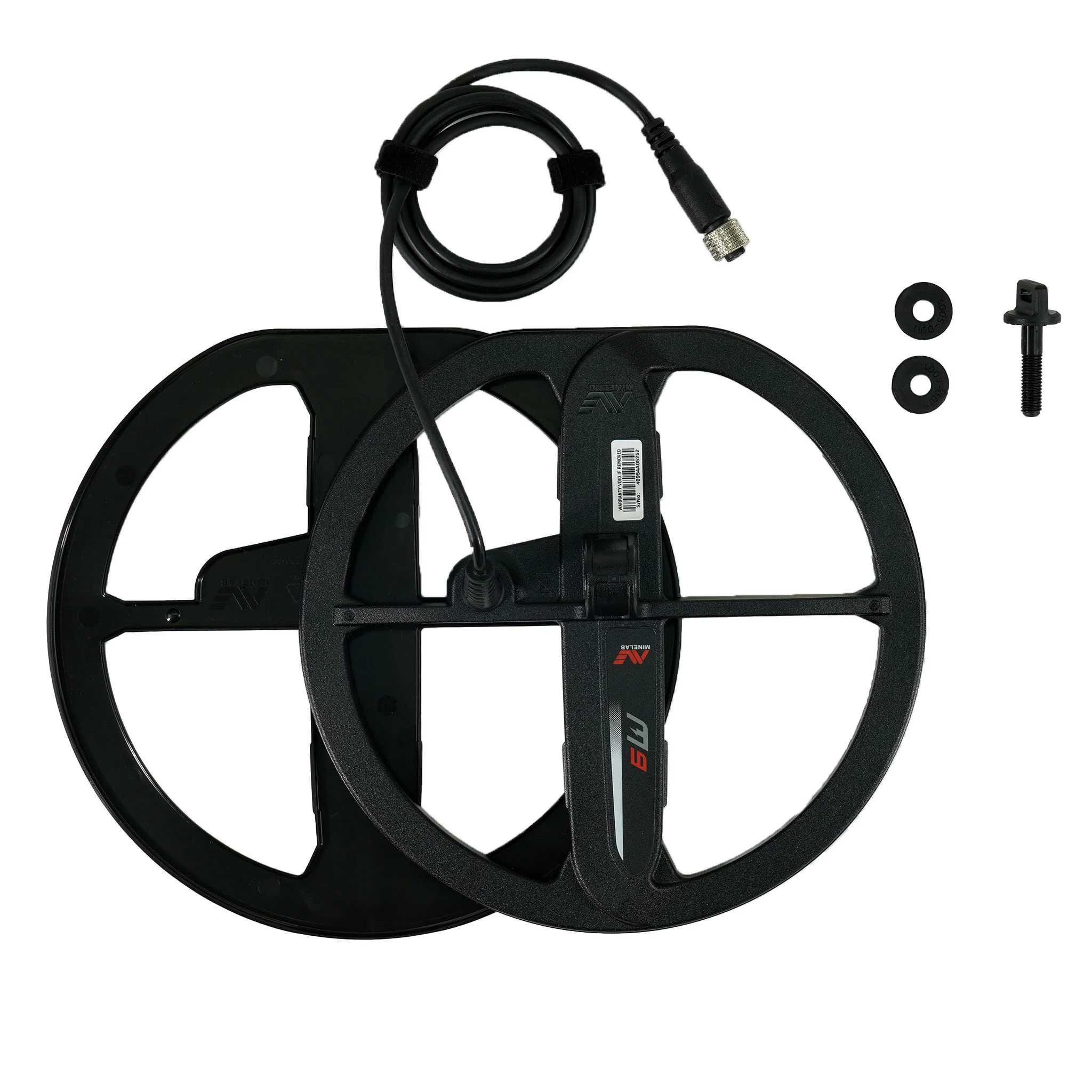

What’s Included with the Manticore M9 Coil

• Minelab M9 9″ Round Double-D Search Coil
• Protective Skidplate (pre-fitted)
• Coil Mounting Hardware

Why Serious Detectorists Add the M9 to Their Kit

• Ultra-Lightweight Profile: Weighing only .80 lbs (362g), this coil significantly cuts down on front-end swing fatigue, letting you hunt for hours longer in rugged fields, dense woods, or heavy surf lines.
• Advanced Target Separation: The tight 9-inch round footprint allows the Multi-IQ+ engine to isolate individual non-ferrous targets hidden directly alongside iron trash, preventing masking in old iron-carpet sites.
• Full Multi-IQ+ Integration: Transmits data seamlessly to the Manticore processing core, preserving the high-resolution 2D Target ID display, depth indicators, and custom audio profiles.
• Submersible Engineering: Rated waterproof up to 16 feet (5 meters), making it the perfect tool for wading beach shorelines, riverbeds, and shallow diving environments.

When studying the engineering behind modern metal detector technologies, the physical footprint of your coil plays a massive role in ground balance stability. The M9 minimizes ground noise in mineralized dirt, giving you a smooth threshold sound where larger coils chatter.

Field Performance Across Difficult Environments

High-Trash Parks and Historic Fairgrounds

Urban hunting grounds are often loaded with aluminum pull-tabs, bottle caps, and rusty iron nails. Sweeping a large coil over these sites can cause multiple targets to blend together, blurring your screen indicators. The M9’s narrow Double-D field slices between closely packed items, allowing the Manticore to process and identify a silver dime even when it is buried inches away from junk metal. Reading online minelab manticore reviews highlights how often detectorists rely on this specific 9-inch size to pull keeper targets out of spots previously deemed “hunted out.”

Surf Zones, Wet Sand, and Shallow Wading

Hunting the shoreline means dealing with crashing waves and shifting sands that exert physical pressure on your equipment. The low-profile, round format of the M9 glides cleanly through the water with minimal resistance, reducing strain on your arm and shaft assembly. Because it is completely waterproof down to 16 feet, you can move from the dry sand straight into the active wash zone without swapping gear. It provides a stable baseline over highly conductive wet saltwater sand, allowing you to maximize sensitivity settings for deep jewelry recovery.

Specifications

• Compatibility: Minelab Manticore Only
• Size/Diameter: 9 Inches
• Configuration: Double-D (DD)
• Shape: Round
• Weight: .80 lbs / 362 grams (including pre-fitted skidplate)
• Waterproof Rating: Fully Submersible to 16 feet (5 Meters)
• Part Number: 3011-0473

Why Buy from Serious Detecting

Serious Detecting is an authorized Minelab dealer, meaning your equipment ships brand new in factory packaging with a valid manufacturer warranty. Our team uses these factory-authorized Metal Detector Search Coils: DD, Concentric, Monoloop & SEF Upgrades in the field, so we can provide real technical advice on choosing between accessory profiles. Explore our complete selection of the Best Minelab Metal Detectors and gear, backed by fast shipping and a simple 30-day return policy.
